Products Description

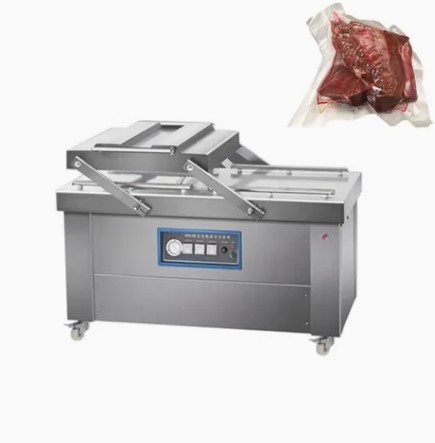

The vacuum shrink wrap machine accelerates heat transfer and improves thermal sterilization efficiency by extracting gas from the packaging container, and prevents gas expansion during sterilization from causing packaging rupture. It uses high barrier packaging materials and strict sealing technology to prevent content exchange, avoid food weight and flavor loss, and prevent secondary contamination.
Technical Parameters
| Model | Vacuum chamber size(mm) | Seal Size(mm) | seal center distance(mm) | packaging capacity (times/hour) | Total weight(kg) | Power Supply | Overall dimension(mm) |
| DZ-800/2S | 966*625*100 | 800*8(10)/2 | 505 | 120-300 | 330 | 380V/50HZ 3.3KW | 1890*750*920 |
| DZ-700/2S | 866*625*100 | 700*8(10)/2 | 505 | 120-300 | 290 | 380V/50HZ 3.0KW | 1490*750*920 |
| DZ-600/2S | 766*625*100 | 600*8(10)/2 | 505 | 120-300 | 278 | 380V/50HZ 2.2KW | 1690*750*920 |
The vacuum shrink wrap machine is equipped with a spacious vacuum chamber measuring 966×625×100 mm, which provides ample space for packaging larger products.
It features two sealing strips, each with a size of 800×8(10) mm, ensuring a strong and secure seal for every package.
The seal center distance of 505 mm allows for efficient arrangement and double-sealing operations, enhancing productivity.
This machine can achieve a packaging capacity of 120 to 300 times per hour, making it an excellent choice for high-efficiency production needs.
The vacuum shrink wrap machine features a forward right-out feeding and discharging system, making operation easier and faster.
The machine uses a fixed hot box for instant heating, which helps reduce energy consumption.
The electric heating elements are precisely arranged to provide uniform and stable heating.
It is designed for small to medium batch production and can work with assembly lines to improve efficiency.
