Products Description
Electric jacketed kettle can be used to boil water, cook, porridge, soup, rice, sugar, oil, noodles, stir-fry fillings (such as red bean paste, moon cake fillings, hot pot base), stew soy products, meat products, jam, etc.
Technical Parameters
|
Electric Heating |
Dimension | Stirring Power(kw) | Heating Power(kw) | Diameter |
|
50L |
1120x790x850mm(1290) | 0.75 | 12(6*2) | 600 |
| 100L | 1220x890x870mm(1310) | 1.1 | 15(6+9) | 700 |
| 200L | 1360x990x970mm(1410) | 1.1/1.5 | 18(9+9) | 800 |
| 300L | 1480x1110x1000mm(1440) | 1.5 | 24(12+12) | 900 |
| 400L | 1580x1220x1020mm(1460) | 1.5 | 27(9*3) | 1000 |
|
500L |
1680x1310x1020mm(1460) | 1.5 | 36(12*3) | 1100 |
| 600L | 1760x1400x1070mm(1510) | 2.2 | 36/48(12*4) | 1200 |
| 800L | 2.2/3 | 60/72 | 1300 | |
| 1000L | 3 | 72/90 | 1400 |

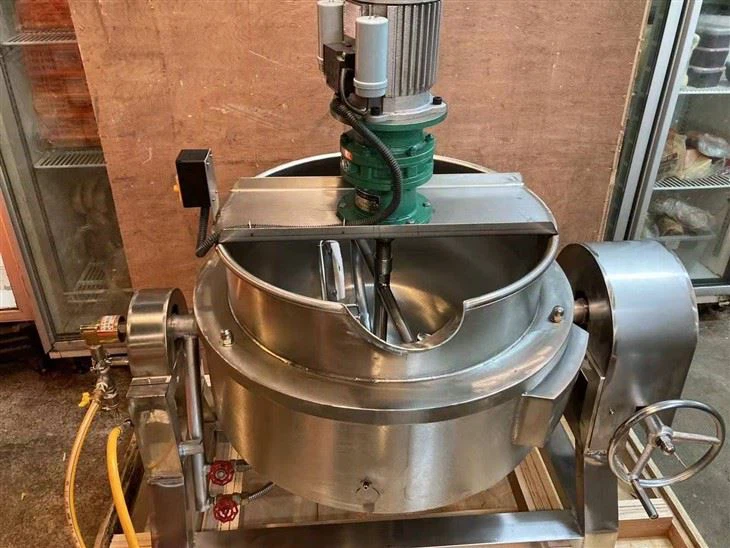

The electric jacketed kettle uses electricity as the heat source. The sandwich layer has 304 seamless electric heating tubes and heat transfer oil. The temperature can reach 300 degrees. It is equipped with an electric control box. It has the characteristics of uniform heating, high thermal efficiency, short boiling time, and easy temperature control. At the same time, the electric jacketed kettle is equipped with a PT100 thermal resistor for temperature detection, which is accurate in measurement. It has good stability and reliable performance.
The whole pot is manually turned over and discharged through the turbine and worm. The temperature is reliable and can be tilted 90 degrees. The material is discharged cleanly and is easy to clean, reducing labor intensity.
The electric jacketed kettle has the characteristics of a large heating area, high thermal efficiency, uniform heating, short heating time and easy temperature control.
Company Information
Luohe Goldenshell Mechanical Equipment Co., Ltd is a company that integrates production and marketing, which means the high quality of machines we provide can be guaranteed, and the price always remains affordable. Our company specializes in a variety of food machinery, especially for vegetable and fruit processing machines.
With 14 years of development, our company now covers an area of 5,000 square meters and has an asset of 5 million CNY. Our company's annual production capacity has reached 100 million units. Our equipment has been certified by a series of credible organizations such as BV, SGS, CE, etc., and we have been awarded many patents and honor certificates.
Certifications
Packing &Delivery
We will first pack the machine in plastic or foam, then in a strong wooden case; for multiple machines or large machines, we will pack them in containers. If you have any special requirements, please let me know!
FAQ
Q: What's the warranty if we buy from you?
Q: How about your delivery time?
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
