Product Description

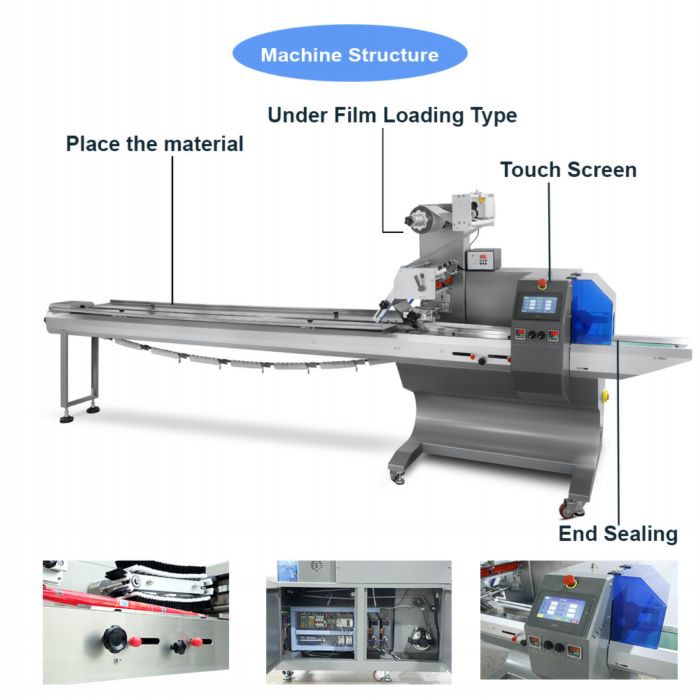

The pillow-type candy packaging machine is designed for packing candies of various sizes. It features simple operation, convenient maintenance, and reliable performance.
The machine automatically senses the bag length without requiring manual adjustments, making the packaging process more intelligent.
Equipped with the latest system, the machine integrates dual motors, dual frequency converters, and PLC control in a single operation, optimizing efficiency and reducing film waste.
The user-friendly interface allows for quick and easy parameter adjustments. Additionally, the built-in fault self-diagnosis function provides clear error displays, ensuring efficient troubleshooting.
Specification
|
Model |
BG-350B |
BG-350D |
|
Film width |
120~340m |
120~340mm |
|
Bag length |
Double knives 65-190mm Single knife 120-280mm |
Double knives 90-220mm Single knife150-330mm |
|
Bag width |
50-160mm |
50-160mm |
|
Product height |
Max.45mm |
Max.60mm |
|
Film roll diameter |
Max.320mm |
Max.320mm |
|
Packing speed |
40-230bag/min |
40-230bag/min |
|
Power |
220V,50/60HZ,2.6KW |
220V,50/60HZ,2.6KW |
|
Machine size |
(L)4011mm(W)770mm (H)1412mm |
(L)4011mm(W)770mm (H)1412mm |
|
Machine Weight |
About 500kg |
About 500kg |
Application
It can be used for packaging food, daily necessities, raw materials, etc., commonly used for packaging candies, bread, snacks, and popsicles. The scope of application is very broad.

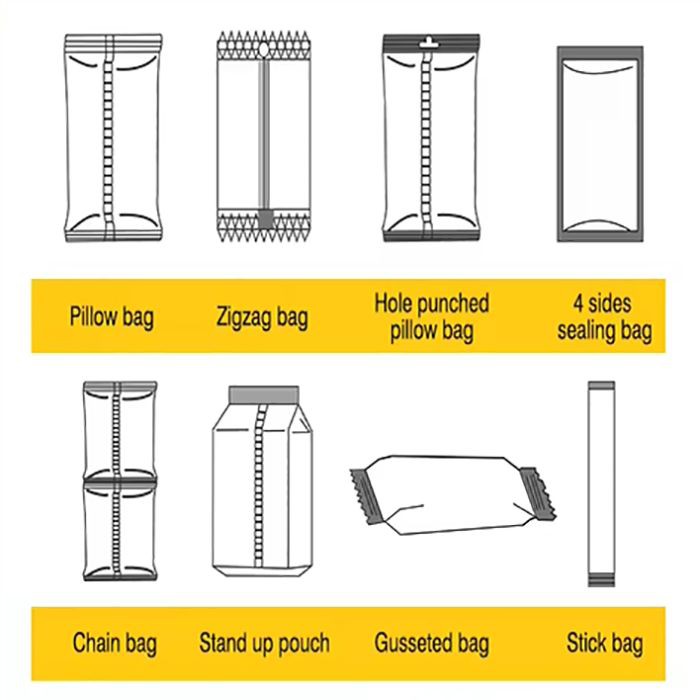

Sealing style
The pillow-type candy packaging machine is engineered for flexibility and high efficiency. With double cutting knives, it supports bag lengths ranging from 65 to 190mm or 90 to 220mm, while the single knife configuration handles longer bags from 120 to 280mm or 150 to 330mm. The machine accommodates bag widths from 50 to 160mm and can pack products with a maximum height of 45mm or 60mm, depending on the model. It is equipped to handle film rolls up to 320mm in diameter. Operating at a packing speed of 40 to 230 bags per minute, this machine ensures fast, precise, and consistent packaging performance suitable for various product sizes.
Packing & Shipping
